熱交換器散熱鰭管 Fin-Tubes
鰭片管可用於製作船上及陸上熱回收器傳熱管。特長：適用流動氣體，依氣體成份選擇可用鰭片管材料。客制化鰭片管長度，可依指定長度製作鰭片管所須長度。適用於高溫及高壓，鰭片管適用於高溫及高壓。
Fin-Tube can be implemented as heat transfer tube in economizer for marine use and land use. Apply to fluid gas : Choose fin-tube material according to gas composition. Customize the length of fin-tube : The length of Fin-tube can be decided by requirement. Reliable at high- temperature & high pressure. The fin-tube is reliable at high-temperature and high-pressure environment.

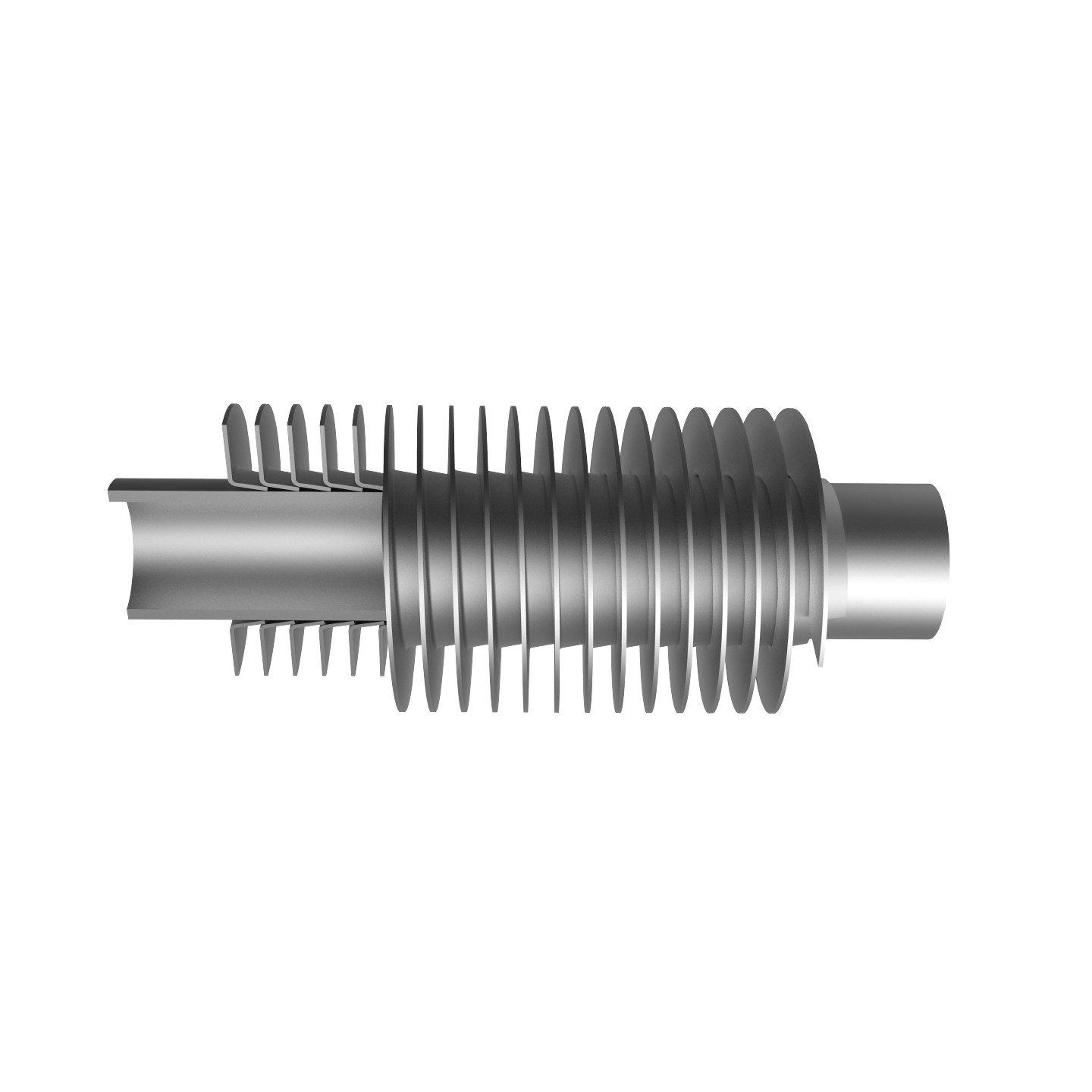

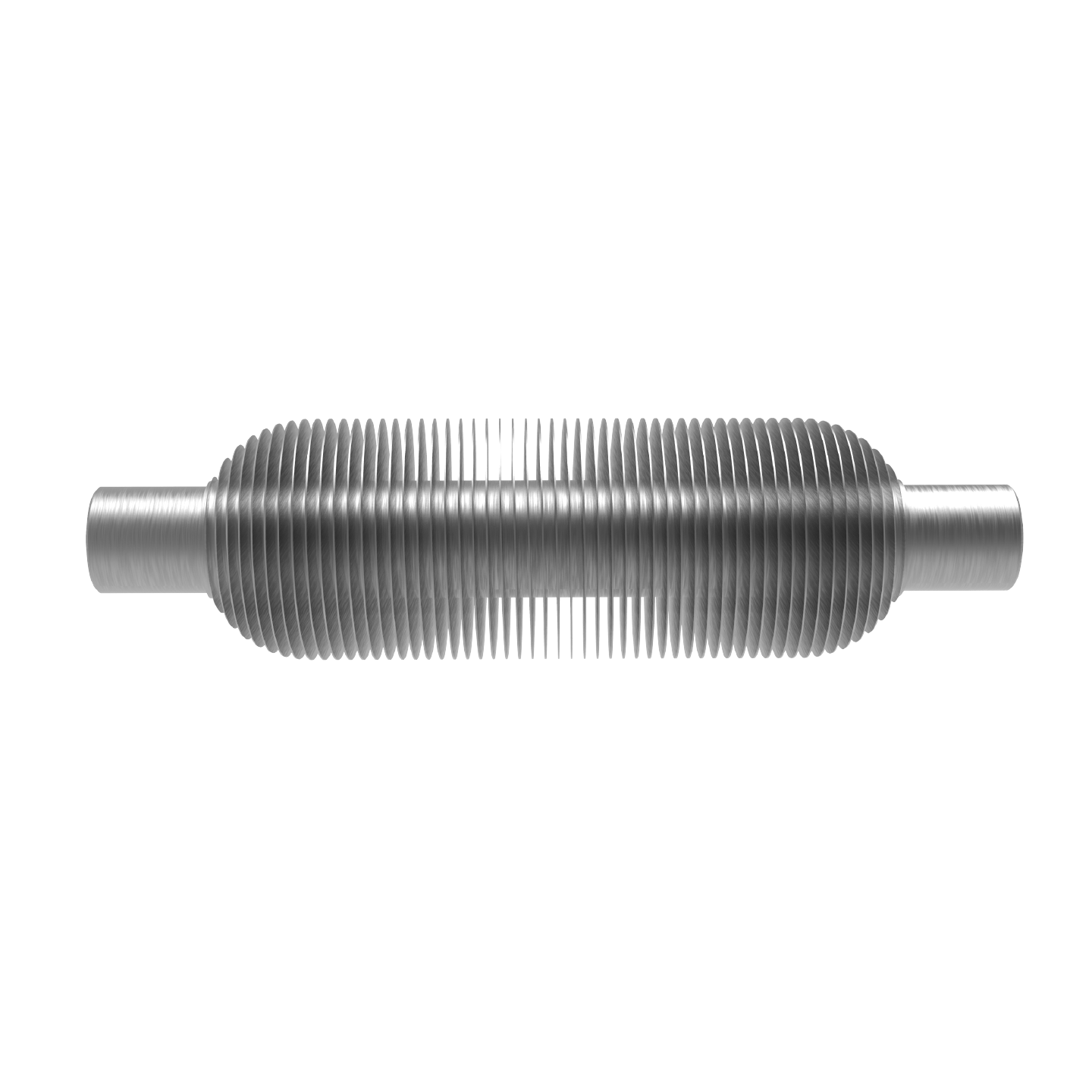

崁入式 EMBEDDED

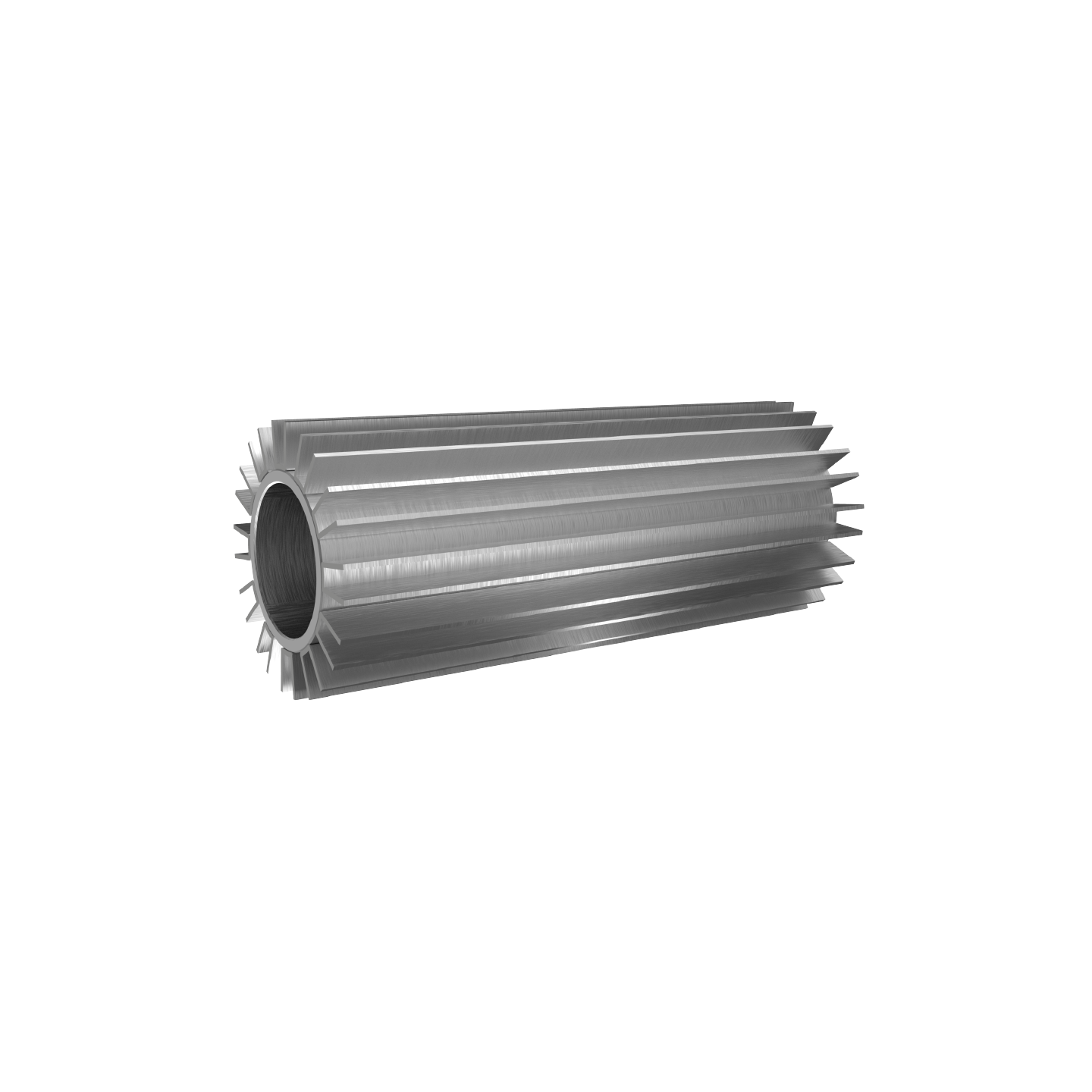

擠壓型 EXTRUSION

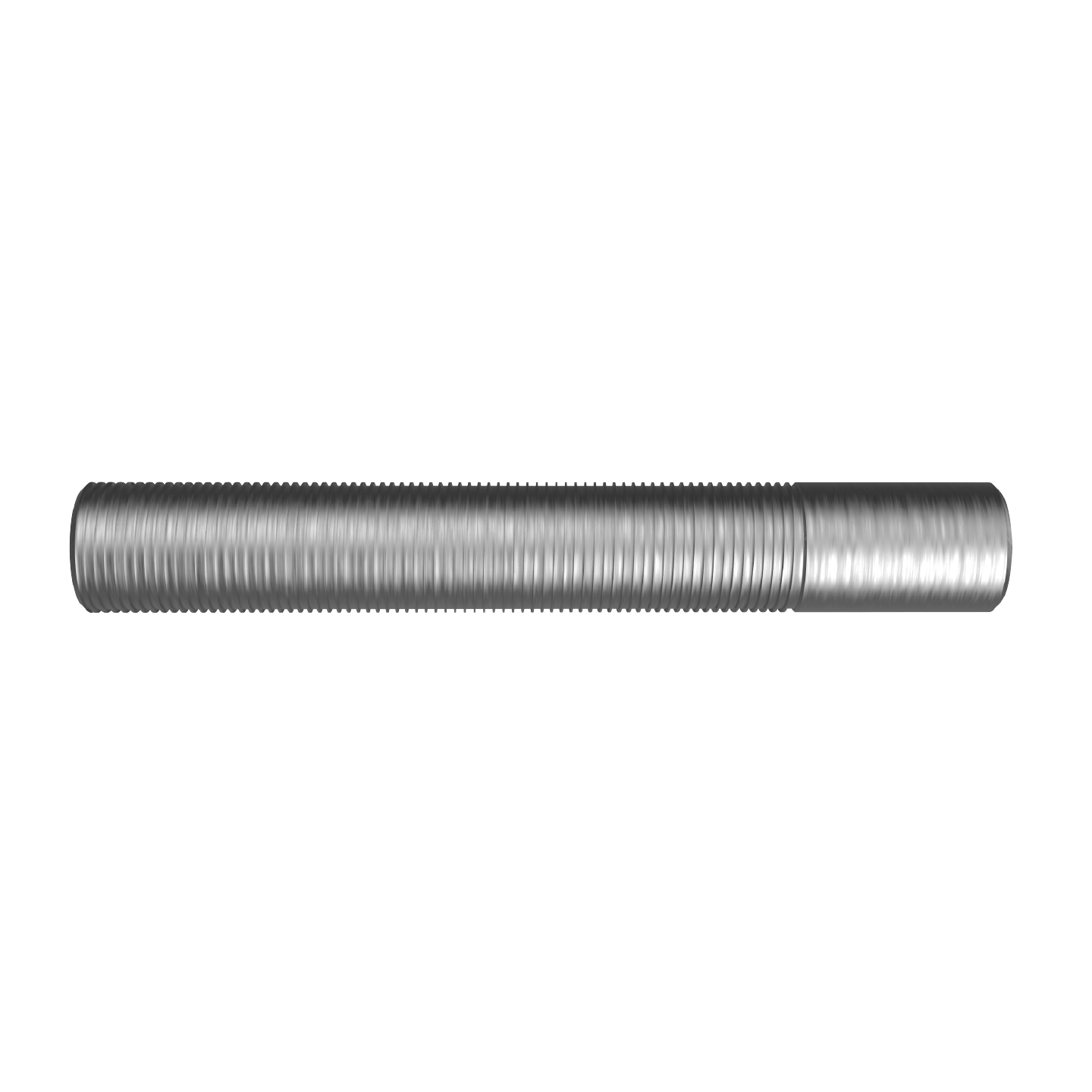

低鰭管 LOW-FIN
L型
I型
U型

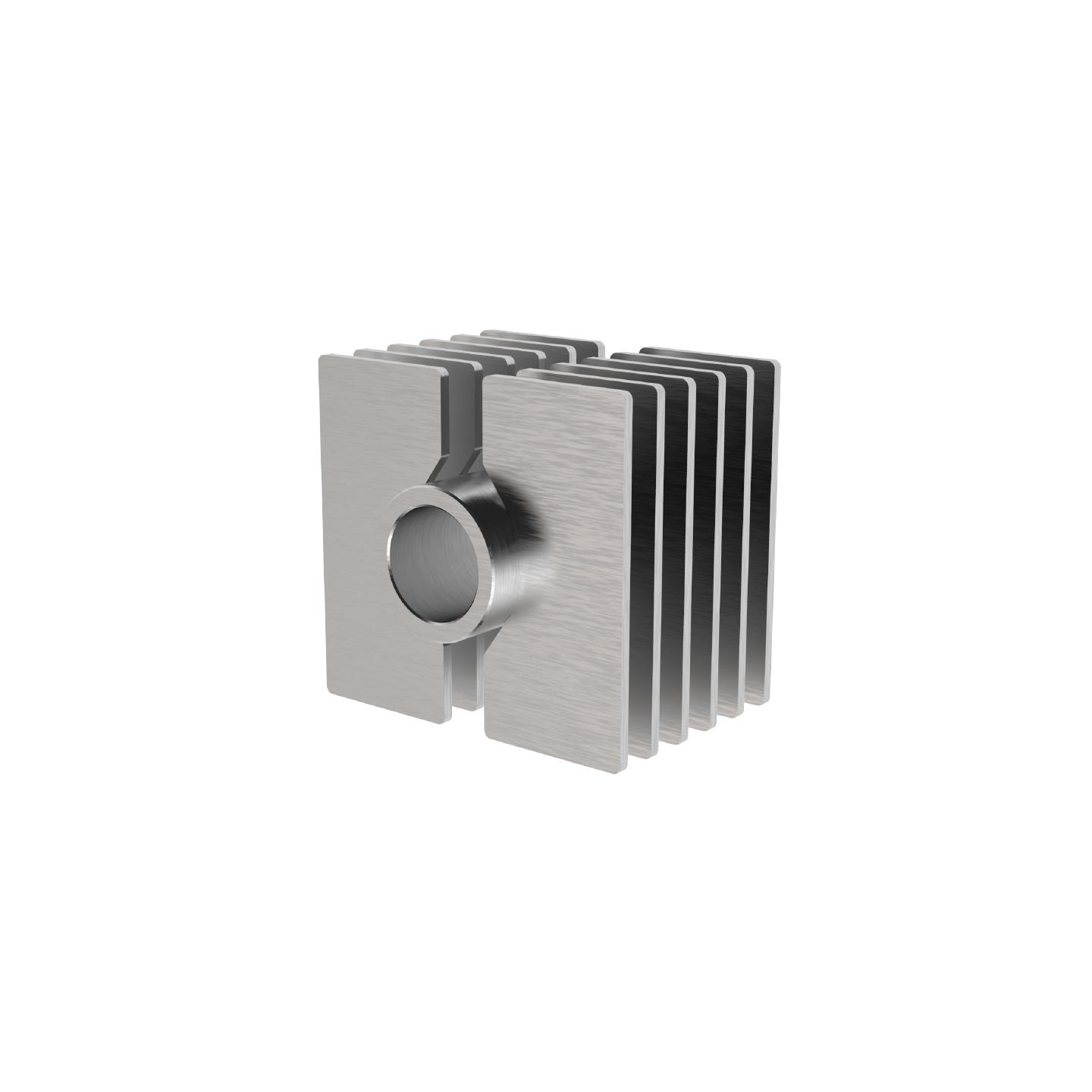

H型

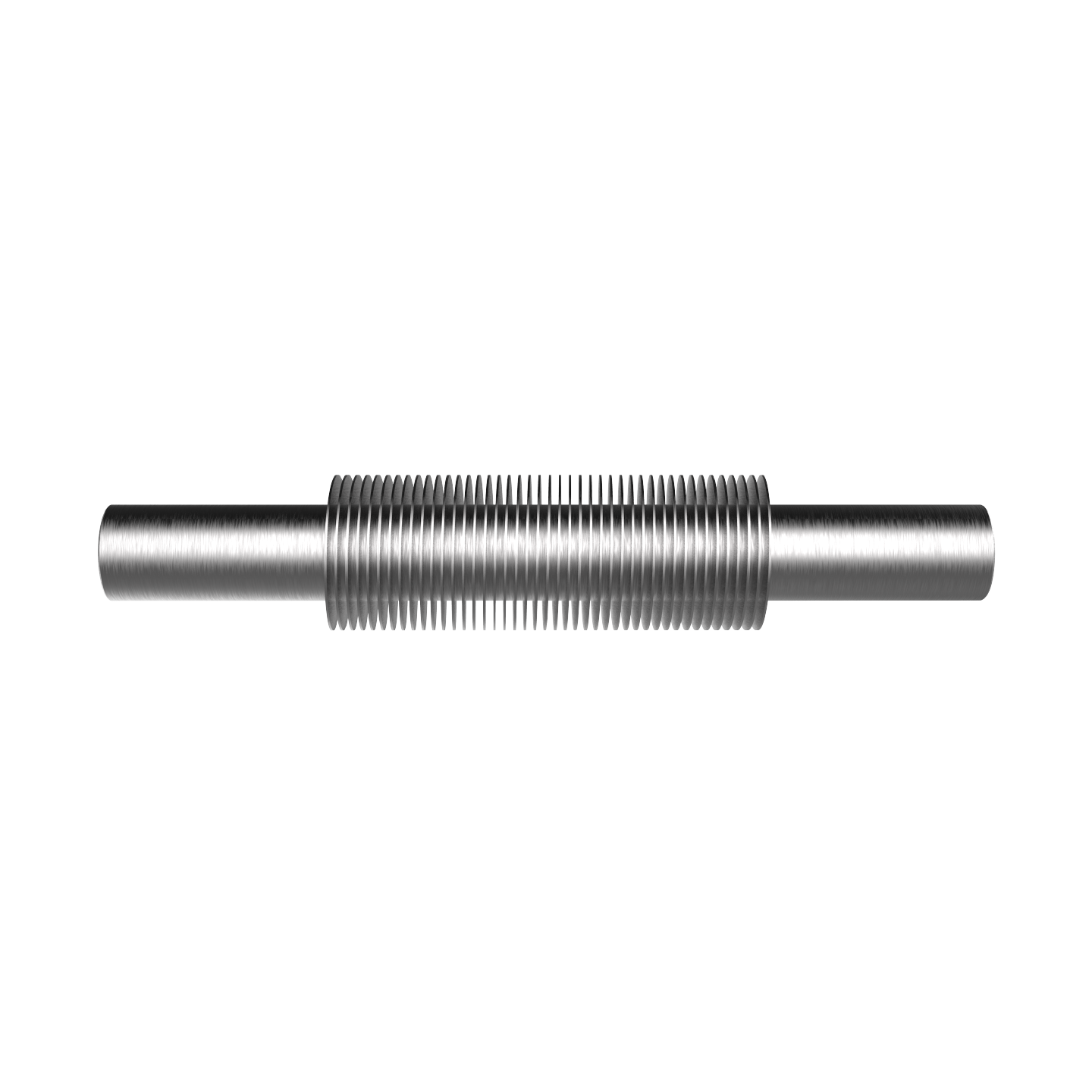

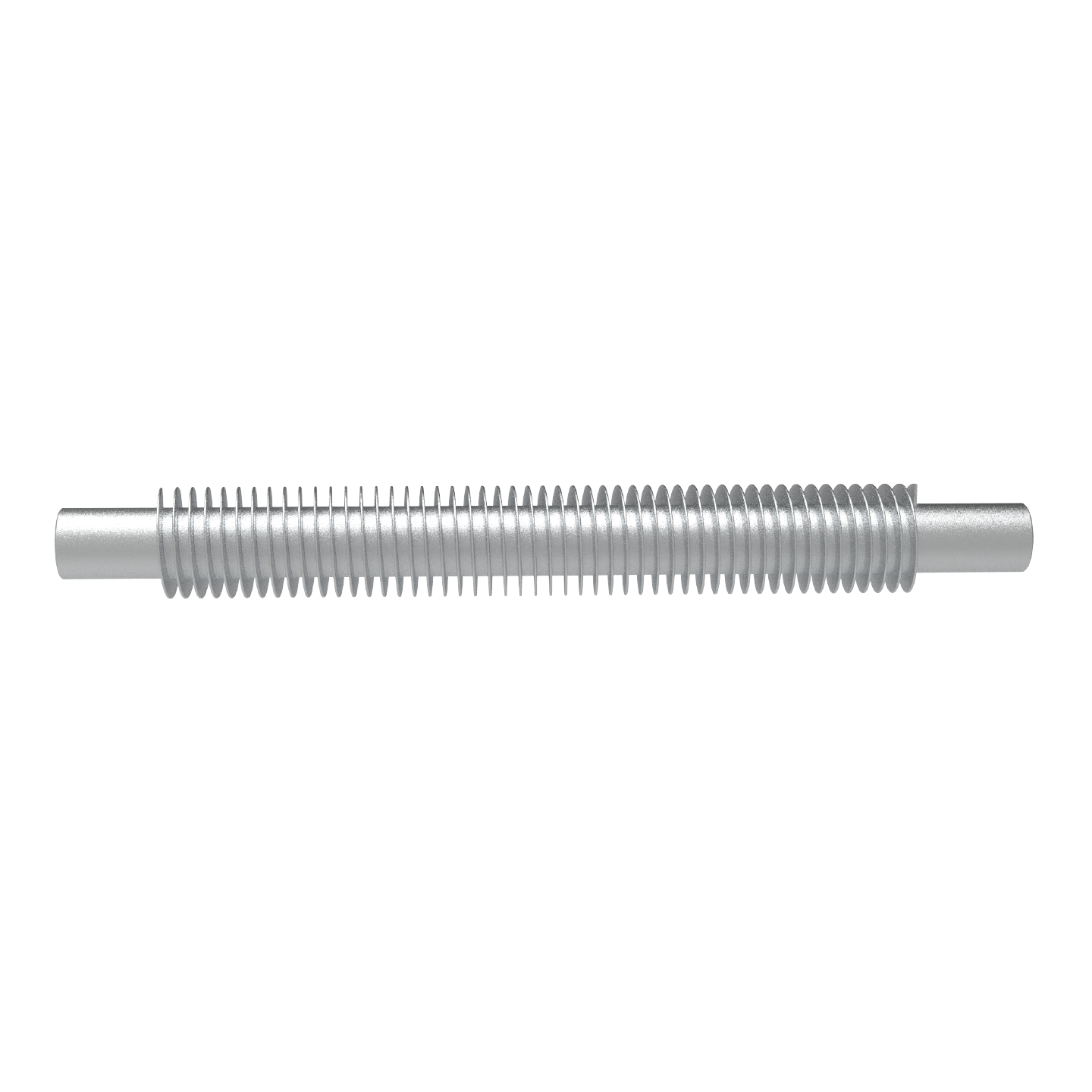

螺旋型
鰭片散熱管製造規範 Fabrication Range of Fin-Tubes
- 管外徑(do): ∅12.7mm ~ ∅101.6mm
- 鰭片厚度(tf ): 0.3mm ~ 1.6mm
- 鰭片高度(Hf ): 8mm ~ 25mm
- 鰭片節距(P): 1片/25.4mm ~ 16片/25.4mm
- 最大管長: 15m
- 管材質: 銅、鋁、碳鋼、不銹鋼、合金鋼及其他
- 鰭片材質: 銅、鋁、碳鋼、不銹鋼、合金鋼及其他

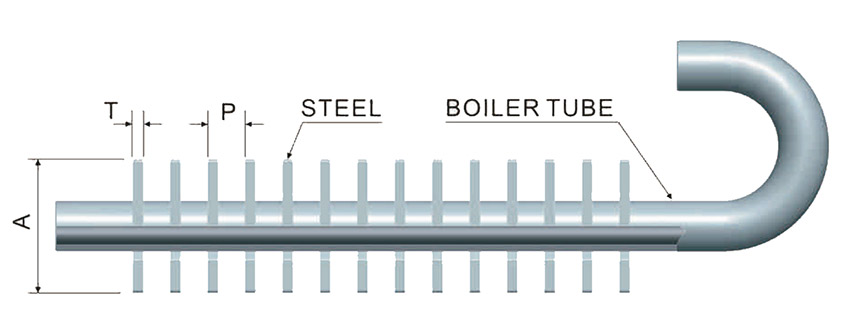

SQUARE TYPE “H” (WELD TYPE)
| TUBE DIA | A | T | P | |
|---|---|---|---|---|
| 1 | ø50.8x5t | □121 | 1.6-3.2 | 12.70 |
| 19.05 | ||||
| 25.40 | ||||
| 2 | ø38.1x4t | □95 | 1.6-3.2 | 12.70 |
| 19.05 | ||||
| 25.40 |

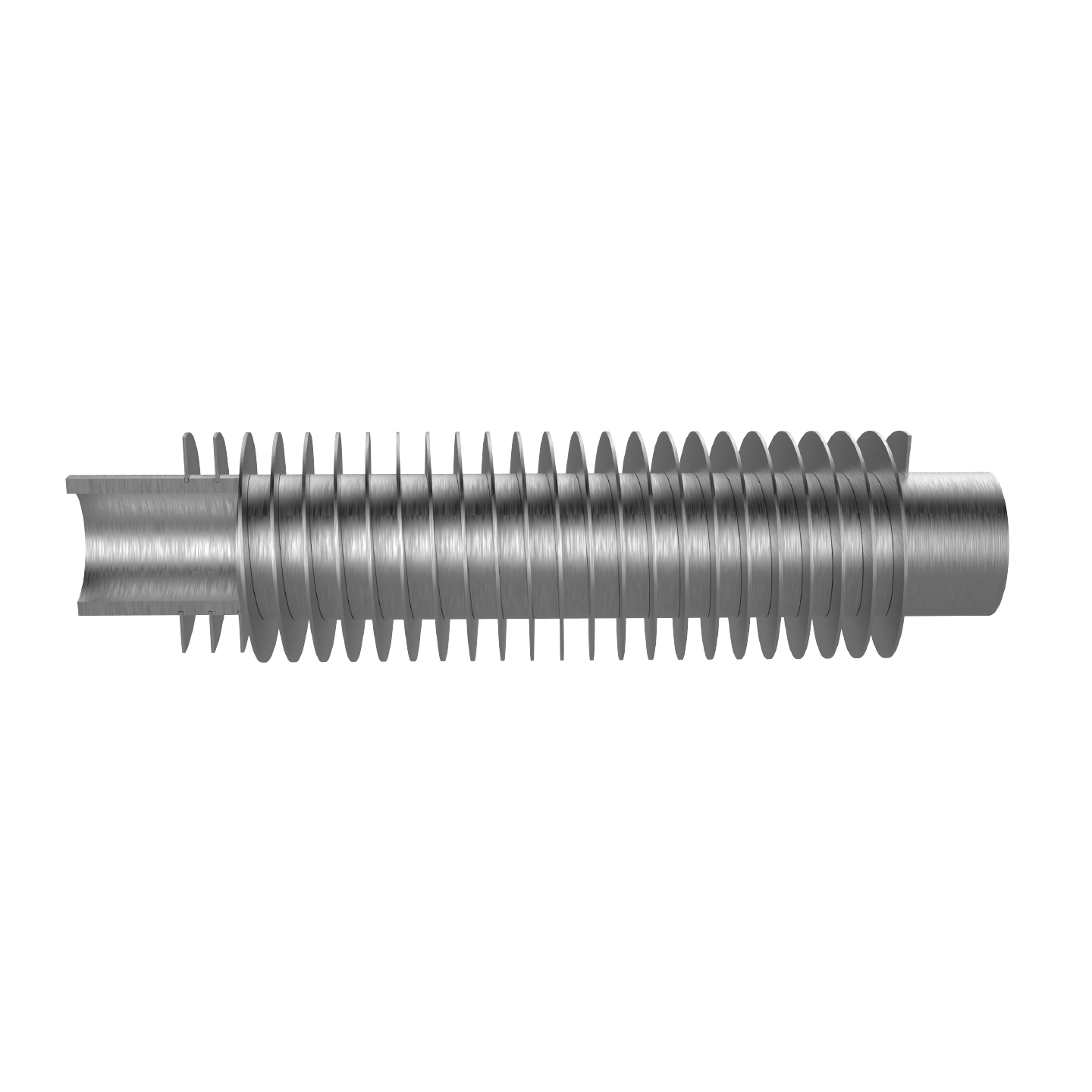

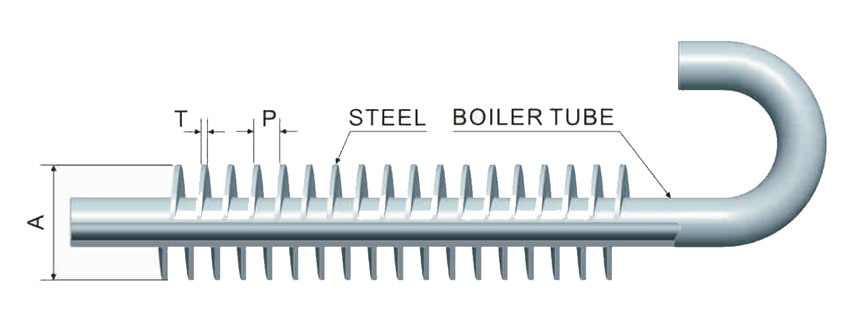

SPIRAL TYPE (WELD TYPE)
| TUBE DIA | A | T | P | |
|---|---|---|---|---|
| 1 | ø38.1x4t | ø58.1 | 1.2-1.8 | 5.08 |
| 8.47 | ||||
| 12.7 | ||||
| 2 | ø50.8x5t | ø88.8 | 1.2-1.8 | 5.08 |
| 8.47 | ||||
| 12.7 |
低鰭管 LOW-FIN
| TUBE | FIN PITCH |
|---|---|
| ø19.05 ø25.4 |
19~25/in |
U型
| TUBE | FIN PITCH |
|---|---|
| ø38.1 ø48.6 |
12~36/OD |
